Carbide Nozzle and Cover

Tungsten carbide material is extremely hard at 91 HRA which is equivalent to 1500 Vickers 30. This material is very wear resistant, with some abrasion tests showing it at 30 times hard steel. It has good long-term dimensional stability, which makes a good material for gage applications.

Quantity:
  • Customized
  • FOTMA

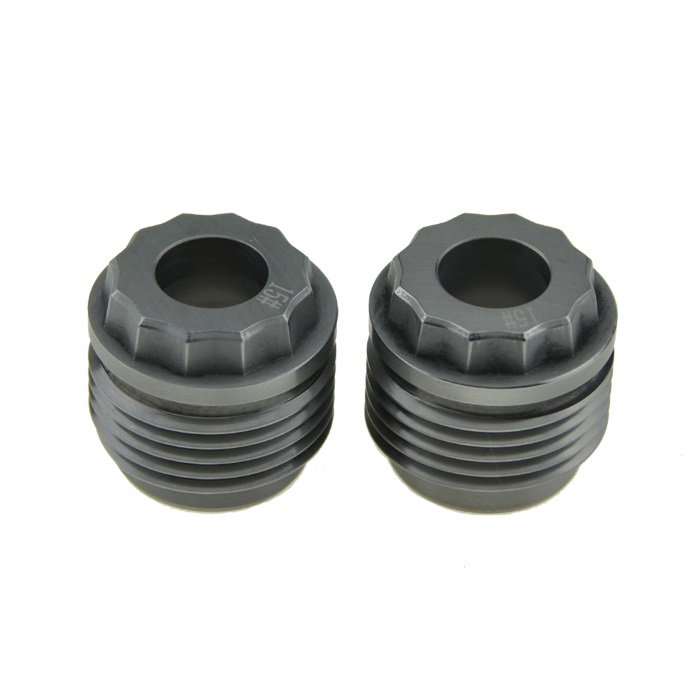

YG6X Tungsten Carbide Wear Parts Nozzles for Sandblasting / Spraying / Water Jet



Tungsten carbide material is extremely hard at 91 HRA which is equivalent to 1500 Vickers 30. This material is very wear resistant, with some abrasion tests showing it at 30 times hard steel. It has good long-term dimensional stability, which makes a good material for gage applications.



We are professional manufacturer of Tungsten Carbide Tools, and can supply kinds of Carbide Nozzles at competitive prices.



Our Advantages:



1. Tungsten Carbide Nozzles always made by special material grade
2. Depressed sintering technology for densitification.
3. Advanded machining capacity for complicated shape and high precision tolerances.
4. Excellent wear resistance and corresion resistance.



The Carbide Nozzles also can be made according to your own specification.



Cemented Carbide Grades for Blasting Nozzles:



Grade

Applications

YG6

Good hardness and normal strength, for drawing of steel and non-ferrous metal

and alloy bars or tubes under the condition of higher Stress.

YG6X

High wear resistance and high hardness,for drawing of steel wires and non-ferrous metal wires

or alloy bars under low-stress condition.

YG8

High wear resistance and high hardness,for drawing and straightening steels,non-ferrous metal

and alloy bars and tubes; And for fabricating of machine parts,tools and wear parts,

such as nozzles,centres,guiding devices,upsetting dies and perforating tools.

YG8X

Good strength and impact toughness; suitable for plates,bars,saws,seal rings,tubes etc. And it is

one of the most popular grade for wear parts.

ZK10UF

Fine-grained alloy, good wear resistance and high strength.It is one of the most popular grade for

rods,bars,tubes and other wear parts, which need high wear resistance and good cautery

resistance and low impact toughness.

ZK30UF

Fine grain grade. Excellent wear resistance, high in strength and impact resistance. Suitable for

rough machining of cast iron,non-ferrous metals,nonmetallic materials and heavy cutting.

YG6N

Good wear resistance and cautery resistance, high strength and fine impact toughness. Suitable

for the submarine oil pump parts such as bushes and sleeves with excellent impact toughness.

Suggestion: We would like to recommend suitable grade depending on your machining materials.



Size Chart of Carbide Nozzles:



Chart 1

TYPE

   Dimension    mm

ΦD

ΦD1

h

06

4.8

12.7

4.4

08

6.4

12.7

5.1

09

7.1

12.7

5.8

10

7.9

12.7

6.6

11

8.7

12.7

7.5

12

9.5

12.7

8.5

13

10.3

12.7

9.7

14

11.1

12.7

11.1

15

11.9

12.7

--

16

12.7

12.7

--



TYPE

            Dimension    mm

ΦD

ΦD1

h

09

7.1

15.9

6.4

10

7.9

15.9

7.1

11

8.7

15.9

7.7

12

9.5

15.9

8.4

13

10.3

15.9

9.1

14

11.1

15.9

10.0

15

11.9

15.9

10.9

16

12.7

15.9

11.9

17

13.5

15.9

13.2

18

14.3

15.9

14.4

19

15.1

15.9

15.6

20

15.9



--

22

17.4



--
