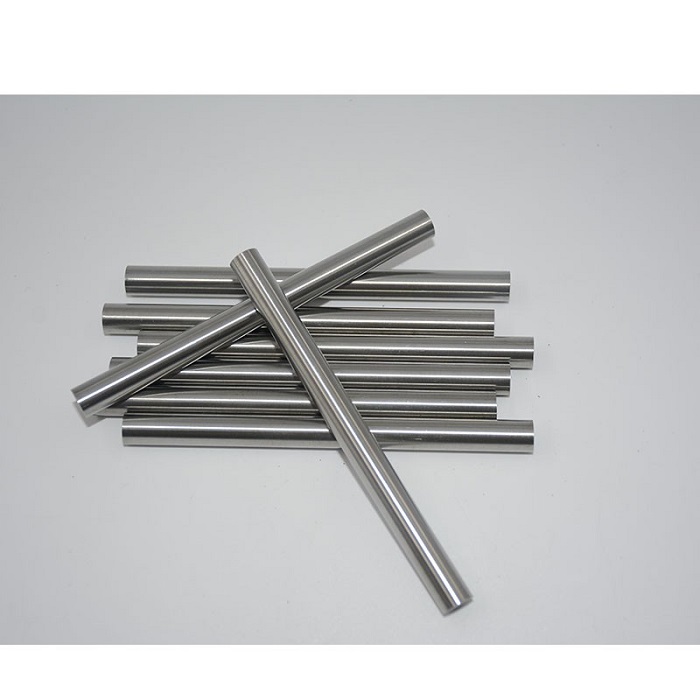

AgW Silver Tungsten Alloy

Silver tungsten alloys contain between 15-70% silver.They are mainly used for electrical contacts—generally heavy-duty devices subject to high current,

Quantity:
  • FOTMA
AgW Tungsten Copper Alloy Silver Tungsten Alloy Customized Parts For HV Equipment

Description:

1.Silver tungsten alloys, also known as silver tungsten carbides, are used in industrial and domestic circuit breaker applications where good weld and erosion resistance is important.

2.The higher silver grades have higher conductivity, and the higher tungsten grades have greater erosion and weld resistance.

3.High contact pressures are required to ensure effective operation if used for frequent high current switching, and mixed oxides of silver tungsten can be formed to give high contact resistance.

4.Silver tungsten alloy has proven to be an excellent material because of its ability to resist contact "sticking" or welding and also because of its resistance to oxidation.

5.We produces AgWC materials ranging from 35% silver and 65% tungsten carbide to 60% silver and 40% tungsten carbide.

6.In some instances, it is advantageous to have a combination of tungsten and tungsten carbide mixed with silver.

Application of Silver Tungsten:

Silver tungsten alloys contain between 15-70% silver.

They are mainly used for electrical contacts—generally heavy-duty devices subject to high current,
such as moving contact for circuit-breakers between 100 and 800 A, earth leakage breakers, moving contact for air circuit breaker between 1000 and 10000 A, thermostats, miniature circuit breakers, arcing contact for large size contactors, moulded-case circuit breakers and heavy-load AC/DC contactors, etc.
Properties of Product
Grade Composition(%) Density
g/cm3
Electrical resistivity
M Ω cm
Hardness
kg f/mm2
Impurity
W Cu
Cu W-(65) 65 35 ≥13.3
≥155 0.5
Cu W-(70) 70 30 ≥13.8
≥175 0.5
Cu W-(75) 75 25 ≥14.5 ≤4.5 ≥195 0.5
Cu W-(80) 80 20 ≥15.15 ≤5 ≥220 0.5
Cu W-(85) 85 15 ≥15.9
≥240 0.5
Cu W-(90) 90 10 ≥16.75
≥260 0.5

Chemical Composition
Element C O N Fe Ni Si
Max 0.01 0.01 0.01 0.01 0.01 0.01
Tolerance 0.002 10% 0.0005 0.001 0.01 0.01

Specification:
high quality W90Cu10 tungsten copper alloy bar manufacturer
Grade Chemical Composition % Mechanical properties
Cu Impurity W Density
(g/cm3)
Hardness
HB
RES
( cm)
Conductivity
IACS/ %
TRS/ Mpa
W50Cu50 50+2.0 0.5 Balance  11.85 115 3.2 54 ---
W55Cu50 45+2.0 0.5 Balance 12.3 125 3.5 49 ---
W60Cu40 40+2.0 0.5 Balance 12.75 140 3.7 47 ---
W65Cu35 35+2.0 0.5 Balance 13.3 155 3.9 44 ---
W70Cu30 30+2.0 0.5 Balance 13.8 175 4.1 42 790
W75Cu25 25+2.0 0.5 Balance 14.5 195 4.5 38 885
W80Cu20 20+2.0 0.5 Balance 15.15 220 5 34 980
W85Cu15 15+2.0 0.5 Balance 15.9 240 5.7 30 1080
W90Cu10 10+2.0 0.5 Balance 16.75 260 6.5 27 1160
high quality W90Cu10 tungsten copper alloy bar manufacturer
